Konsern Anlegg: System 7

Introduksjon

• System 1, Tavlerom kjeller. IPadresse 172.16.0.7 håndterer hovedsakelig signaler fra mottak, grensemelk og vaskestasjoner i prosessanlegget. Se IOliste



System

Teknisk beskrivelse

• Arbeidsstasjoner anlegget
• Styresystemer i anlegget
• • System 1, Tavlerom kjeller. IPadresse 172.16.0.1
  • System 2, Tavlerom 1. etg. IPadresse 172.16.0.2
  • System 3, Tavlerom 1. etg. IPadresse 172.16.0.3
  • System 4, Tavlerom 1. etg. IPadresse 172.16.0.4
  • System 6, Tavlerom 1. etg. IPadresse 172.16.0.6
  • System 7, Renseanlegg kj. IPadresse 172.16.0.7

Funksjonsbeskrivelse

• Se manualer og dokumentasjon i SattLine.

Tanker

• .

Linjer

• .

Kjølere

• .

Pasteurer

• .

Separatorer

• .

Homogenisatorer

• .

Andre

• IOListe



2004-09-16-12:51:47 Anlegg2004

Page 137

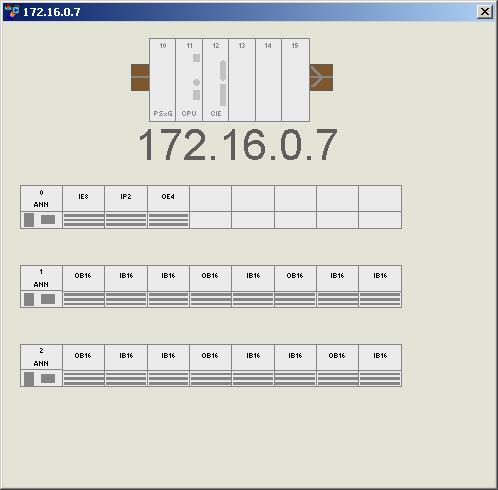

System:172.16.0.7 StartAddress:0.0.0 Cardtype:IE8 ver B

Address IOTagName Attributes

0.0.0 '13_50' FR4::IO.Tgr153.'13_50'.Value <0.0..14.0> "Ph" SignalRange = 4-20mA
0.0.1 '19_54' FR4::IO.Tgr160.'19_54'.Value Temp.Transmitter T160 <0.0..100.0> "TT" SignalRange = 4-20mA
0.0.2 '41_53' FR4::IO.Tgr160.'41_53'.Value NivåMåler T160 <0.0..100.0> "LT" SignalRange = 4-20mA
0.0.3 '41_54' FR4::IO.Tgr160.'41_54'.Value Temp.Transmitter T160 <0.0..100.0> "TT" SignalRange = 4-20mA
0.0.4 41_60' FR4::IO.Tgr166.'41_60'.Value Ph avløp <0.0..14.0> "Ph" SignalRange = 4-20mA
0.0.5 '41_87' FR4::IO.Tgr166.'41_87'.Value Flowmåler til Biorotor <0.0..100.0> "m3" SignalRange = 4-20mA
0.0.6 '10_60' FR4::IO.Tgr150.'10_60'.Value Nivå Tank 150/10.00B <0.0..100.0> "" SignalRange = 4-20mA
0.0.7 '41_88' FR4::IO.Tgr166.'41_88'.Value Temp avløp <0.0..100.0> "TT" SignalRange = 4-20mA

Page 138

System:172.16.0.7 StartAddress:0.1.0 Cardtype:IP2

IO-document not supported on this module

Page 139

System:172.16.0.7 StartAddress:0.2.0 Cardtype:OE4 ver B

SafeState = Reset

Address IOTagName Attributes

0.2.0 'FV41_87' FR4::IO.Tgr166.'FV41_87'.Value Ventil for flow til Biorotor <0.0..100.0> "" SignalRange = 4-20mA

Page 140

System:172.16.0.7 StartAddress:1.0.0 Cardtype:OB16

SafeState = Reset

Address IOTagName Attributes

1.0.0 V19_11 FR4::IO.Tgr160.V19_11.Aktivera.Value UT Aktivera ventil
1.0.1 V19_12 FR4::IO.Tgr160.V19_12.Aktivera.Value UT Aktivera ventil
1.0.2 V19_13 FR4::IO.Tgr160.V19_13.Aktivera.Value UT Aktivera ventil
1.0.3 V19_19 FR4::IO.Tgr160.V19_19.Aktivera.Value UT Aktivera ventil
1.0.4 V19_20 FR4::IO.Tgr160.V19_20.Aktivera.Value UT Aktivera ventil
1.0.5 V10.06 FR4::IO.Tgr150.V10_06.Aktivera.Value UT Aktivera ventil
1.0.6 V10.07 FR4::IO.Tgr150.V10_07.Aktivera.Value UT Aktivera ventil
1.0.7 V19_06 FR4::IO.Tgr160.V19_06.Aktivera.Value UT Aktivera ventil
1.0.8 V19_07 FR4::IO.Tgr160.V19_07.Aktivera.Value UT Aktivera ventil
1.0.9 V19_08 FR4::IO.Tgr160.V19_08.Aktivera.Value UT Aktivera ventil
1.0.10 V25_02 FR4::IO.Tgr153.V25_02.Aktivera.Value UT Aktivera ventil
1.0.11 V10_08 FR4::IO.Tgr160.V10_08.Aktivera.Value UT Aktivera ventil
1.0.12 V41_06 FR4::IO.Tgr160.V41_06.Aktivera.Value UT Aktivera ventil
1.0.13 V10_05. FR4::IO.Tgr153.V10_05.Aktivera.Value UT Aktivera ventil
1.0.14 V10_01 FR4::IO.Tgr150.V10_01.Aktivera.Value UT Aktivera ventil
1.0.15 V10_02 FR4::IO.Tgr153.V10_02.Aktivera.Value UT Aktivera ventil

Page 141

System:172.16.0.7 StartAddress:1.1.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

1.1.0 V19_11.FB1 FR4::IO.Tgr160.V19_11.FB1.Value INN Ventil åpen
1.1.1 V19_11.FB2 FR4::IO.Tgr160.V19_11.FB2.Value INN Ventil stengt
1.1.2 V19_12.FB1 FR4::IO.Tgr160.V19_12.FB1.Value INN Ventil åpen
1.1.3 V19_12.FB2 FR4::IO.Tgr160.V19_12.FB2.Value INN Ventil stengt
1.1.4 V19_13.FB1 FR4::IO.Tgr160.V19_13.FB1.Value INN Ventil åpen
1.1.5 V19_13.FB2 FR4::IO.Tgr160.V19_13.FB2.Value INN Ventil stengt
1.1.6 V19_19.FB1 FR4::IO.Tgr160.V19_19.FB1.Value INN Ventil åpen
1.1.7 V19_19.FB2 FR4::IO.Tgr160.V19_19.FB2.Value INN Ventil stengt
1.1.8 V19_20.FB1 FR4::IO.Tgr160.V19_20.FB1.Value INN Ventil åpen
1.1.9 V19_20.FB2 FR4::IO.Tgr160.V19_20.FB2.Value INN Ventil stengt
1.1.10 V10.06FB1 FR4::IO.Tgr150.V10_06.FB1.Value INN Ventil åpen
1.1.11 V10.06FB2 FR4::IO.Tgr150.V10_06.FB2.Value INN Ventil stengt
1.1.12 V10.07FB1 FR4::IO.Tgr150.V10_07.FB1.Value INN Ventil åpen
1.1.13 V10.07FB2 FR4::IO.Tgr150.V10_07.FB2.Value INN Ventil stengt
1.1.14 V19_06.FB1 FR4::IO.Tgr160.V19_06.FB1.Value INN Ventil åpen
1.1.15 V19_06.FB2 FR4::IO.Tgr160.V19_06.FB2.Value INN Ventil stengt

Page 142

System:172.16.0.7 StartAddress:1.2.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

1.2.0 V19_07.FB1 FR4::IO.Tgr160.V19_07.FB1.Value INN Ventil åpen
1.2.1 V19_07.FB2 FR4::IO.Tgr160.V19_07.FB2.Value INN Ventil stengt
1.2.2 V19_08.FB1 FR4::IO.Tgr160.V19_08.FB1.Value INN Ventil åpen
1.2.3 V19_08.FB2 FR4::IO.Tgr160.V19_08.FB2.Value INN Ventil stengt
1.2.4 V25_02.FB1 FR4::IO.Tgr153.V25_02.FB1.Value INN Ventil åpen
1.2.5 V25_02.FB2 FR4::IO.Tgr153.V25_02.FB2.Value INN Ventil stengt
1.2.6 V10_08.FB1 FR4::IO.Tgr160.V10_08.FB1.Value INN Ventil åpen
1.2.7 V10_08.FB2 FR4::IO.Tgr160.V10_08.FB2.Value INN Ventil stengt
1.2.8 V41_06.FB1 FR4::IO.Tgr160.V41_06.FB1.Value INN Ventil åpen
1.2.9 V41_06.FB2 FR4::IO.Tgr160.V41_06.FB2.Value INN Ventil stengt
1.2.10 V10_05.FB1 FR4::IO.Tgr153.V10_05.FB1.Value INN Ventil åpen
1.2.11 V10_05.FB2 FR4::IO.Tgr153.V10_05.FB2.Value INN Ventil stengt
1.2.12 V10_01.FB1 FR4::IO.Tgr150.V10_01.FB1.Value INN Ventil åpen
1.2.13 V10_01.FB2 FR4::IO.Tgr150.V10_01.FB2.Value INN Ventil stengt
1.2.14 V10_02.FB1 FR4::IO.Tgr153.V10_02.FB1.Value INN Ventil åpen
1.2.15 V10_02.FB2 FR4::IO.Tgr153.V10_02.FB2.Value INN Ventil stengt

Page 143

System:172.16.0.7 StartAddress:1.3.0 Cardtype:OB16

SafeState = Reset

Address IOTagName Attributes

1.3.0 V10_03 FR4::IO.Tgr150.V10_03.Aktivera.Value UT Aktivera ventil
1.3.1 V41_07 FR4::IO.Tgr166.V41_03.Aktivera.Value Utløpsventil biorotor UT Aktivera ventil

Page 144

System:172.16.0.7 StartAddress:1.4.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

1.4.0 V10_03.FB1 FR4::IO.Tgr150.V10_03.FB1.Value INN Ventil åpen
1.4.1 V10_03.FB2 FR4::IO.Tgr150.V10_03.FB2.Value INN Ventil stengt
1.4.2 V41_07.FB1 FR4::IO.Tgr166.V41_03.FB1.Value Utløpsventil biorotor INN Ventil åpen
1.4.3 V41_07.FB2 FR4::IO.Tgr166.V41_03.FB2.Value Utløpsventil biorotor INN Ventil stengt

Page 145

System:172.16.0.7 StartAddress:1.5.0 Cardtype:OB16

SafeState = Reset

Address IOTagName Attributes

1.5.15 - FR4::IO.Tgr160.RECORDER.Value Recorder for skriving av Temp T19.00

Page 146

System:172.16.0.7 StartAddress:1.6.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

1.6.11 CIPStop FR4::IO.Tgr153.CIPStop.Value
1.6.12 CIPStart FR4::IO.Tgr153.CIPStart.Value
1.6.13 CIPNødstopp FR4::IO.Tgr153.CIPNødstopp.Value
1.6.14 '20_50' FR4::IO.Tgr153.'20_50'.Value LSH Tank157/20.00
1.6.15 '20_51' FR4::IO.Tgr153.'20_51'.Value LSL Tank157/20.00

Page 147

System:172.16.0.7 StartAddress:1.7.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

1.7.0 '17_52A' FR4::IO.Tgr153.'17_52A'.Value LSL Tank154/17.00A
1.7.1 '17_50A' FR4::IO.Tgr153.'17_50A'.Value LH Tank154/17.00A
1.7.2 '17_51A' FR4::IO.Tgr153.'17_51A'.Value LSM Tank154/17.00A
1.7.3 '17_52' FR4::IO.Tgr153.'17_52'.Value LSL Tank153/17.00
1.7.4 '17_50' FR4::IO.Tgr153.'17_50'.Value LH Tank153/17.00
1.7.5 '17_51' FR4::IO.Tgr153.'17_51'.Value LSM Tank153/17.00
1.7.6 '17_52B' FR4::IO.Tgr153.'17_52B'.Value LSL Tank155/17.00B
1.7.7 '10_50' FR4::IO.Tgr150.'10_50'.Value LSH T152/Tank 10.00
1.7.8 '17_50B' FR4::IO.Tgr153.'17_50B'.Value LH Tank155/17.00B
1.7.9 '17_51B' FR4::IO.Tgr153.'17_51B'.Value LSM Tank155717.00B
1.7.10 '19_50' FR4::IO.Tgr160.'19_50'.Value LH Tank163
1.7.11 '19_52' FR4::IO.Tgr160.'19_52'.Value LSL164
1.7.12 41_52' FR4::IO.Tgr160.'41_52'.Value LSL Tank160
1.7.13 41_50' FR4::IO.Tgr160.'41_50'.Value LH Tank160
1.7.14 '10_61' FR4::IO.Tgr160.'10_61'.Value
1.7.15 '19_60' FR4::IO.Tgr160.'19_60'.Value

Page 148

System:172.16.0.7 StartAddress:2.0.0 Cardtype:OB16

SafeState = Reset

Address IOTagName Attributes

2.0.0 V17_03 FR4::IO.Tgr153.V17_03.Aktivera.Value UT Aktivera ventil
2.0.1 V17_05 FR4::IO.Tgr153.V17_05.Aktivera.Value UT Aktivera ventil
2.0.2 V19_04 FR4::IO.Tgr153.V19_04.Aktivera.Value UT Aktivera ventil
2.0.3 V20_04 FR4::IO.Tgr153.V20_04.Aktivera.Value UT Aktivera ventil
2.0.4 V20_05 FR4::IO.Tgr153.V20_05.Aktivera.Value UT Aktivera ventil
2.0.5 V21_02 FR4::IO.Tgr153.V21_02.Aktivera.Value UT Aktivera ventil
2.0.6 V25_04 FR4::IO.Tgr153.V25_04.Aktivera.Value UT Aktivera ventil
2.0.7 V13_01 FR4::IO.Tgr153.V13_01.Aktivera.Value UT Aktivera ventil
2.0.8 V17_01 FR4::IO.Tgr153.V17_01.Aktivera.Value UT Aktivera ventil
2.0.9 V17_02 FR4::IO.Tgr153.V17_02.Aktivera.Value UT Aktivera ventil
2.0.10 V19_05 FR4::IO.Tgr153.V19_05.Aktivera.Value UT Aktivera ventil
2.0.11 V20_02 FR4::IO.Tgr153.V20_02.Aktivera.Value UT Aktivera ventil
2.0.12 V20_03 FR4::IO.Tgr153.V20_03.Aktivera.Value UT Aktivera ventil
2.0.13 V21_01 FR4::IO.Tgr153.V21_01.Aktivera.Value UT Aktivera ventil
2.0.14 V25_03 FR4::IO.Tgr153.V25_03.Aktivera.Value UT Aktivera ventil
2.0.15 V13_02 FR4::IO.Tgr153.V13_02.Aktivera.Value UT Aktivera ventil

Page 149

System:172.16.0.7 StartAddress:2.1.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

2.1.0 V17_03.FB1 FR4::IO.Tgr153.V17_03.FB1.Value INN Ventil åpen
2.1.1 V17_03.FB2 FR4::IO.Tgr153.V17_03.FB2.Value INN Ventil stengt
2.1.2 V17_05.FB1 FR4::IO.Tgr153.V17_05.FB1.Value INN Ventil åpen
2.1.3 V17_05.FB2 FR4::IO.Tgr153.V17_05.FB2.Value INN Ventil stengt
2.1.4 V19_04.FB1 FR4::IO.Tgr153.V19_04.FB1.Value INN Ventil åpen
2.1.5 V19_04.FB2 FR4::IO.Tgr153.V19_04.FB2.Value INN Ventil stengt
2.1.6 V20_04.FB1 FR4::IO.Tgr153.V20_04.FB1.Value INN Ventil åpen
2.1.7 V20_04.FB2 FR4::IO.Tgr153.V20_04.FB2.Value INN Ventil stengt
2.1.8 V20_05.FB1 FR4::IO.Tgr153.V20_05.FB1.Value INN Ventil åpen
2.1.9 V20_05.FB2 FR4::IO.Tgr153.V20_05.FB2.Value INN Ventil stengt
2.1.10 V21_02.FB1 FR4::IO.Tgr153.V21_02.FB1.Value INN Ventil åpen
2.1.11 V21_02.FB2 FR4::IO.Tgr153.V21_02.FB2.Value INN Ventil stengt
2.1.12 V25_04.FB1 FR4::IO.Tgr153.V25_04.FB1.Value INN Ventil åpen
2.1.13 V25_04.FB2 FR4::IO.Tgr153.V25_04.FB2.Value INN Ventil stengt
2.1.14 V13_01.FB1 FR4::IO.Tgr153.V13_01.FB1.Value INN Ventil åpen
2.1.15 V13_01.FB2 FR4::IO.Tgr153.V13_01.FB2.Value INN Ventil stengt

Page 150

System:172.16.0.7 StartAddress:2.2.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

2.2.0 V17_01.FB1 FR4::IO.Tgr153.V17_01.FB1.Value INN Ventil åpen
2.2.1 V17_01.FB2 FR4::IO.Tgr153.V17_01.FB2.Value INN Ventil stengt
2.2.2 V17_02.FB1 FR4::IO.Tgr153.V17_02.FB1.Value INN Ventil åpen
2.2.3 V17_02.FB2 FR4::IO.Tgr153.V17_02.FB2.Value INN Ventil stengt
2.2.4 V19_05.FB1 FR4::IO.Tgr153.V19_05.FB1.Value INN Ventil åpen
2.2.5 V19_05.FB2 FR4::IO.Tgr153.V19_05.FB2.Value INN Ventil stengt
2.2.6 V20_02.FB1 FR4::IO.Tgr153.V20_02.FB1.Value INN Ventil åpen
2.2.7 V20_02.FB2 FR4::IO.Tgr153.V20_02.FB2.Value INN Ventil stengt
2.2.8 V20_03.FB1 FR4::IO.Tgr153.V20_03.FB1.Value INN Ventil åpen
2.2.9 V20_03.FB2 FR4::IO.Tgr153.V20_03.FB2.Value INN Ventil stengt
2.2.10 V21_01.FB1 FR4::IO.Tgr153.V21_01.FB1.Value INN Ventil åpen
2.2.11 V21_01.FB2 FR4::IO.Tgr153.V21_01.FB2.Value INN Ventil stengt
2.2.12 V25_03.FB1 FR4::IO.Tgr153.V25_03.FB1.Value INN Ventil åpen
2.2.13 V25_03.FB2 FR4::IO.Tgr153.V25_03.FB2.Value INN Ventil stengt
2.2.14 V13_02.FB1 FR4::IO.Tgr153.V13_02.FB1.Value INN Ventil åpen
2.2.15 V13_02.FB2 FR4::IO.Tgr153.V13_02.FB2.Value INN Ventil stengt

Page 151

System:172.16.0.7 StartAddress:2.3.0 Cardtype:OB16

SafeState = Reset

Address IOTagName Attributes

2.3.0 V17_03B FR4::IO.Tgr153.V17_03B.Aktivera.Value UT Aktivera ventil
2.3.1 V17_05B FR4::IO.Tgr153.V17_05B.Aktivera.Value UT Aktivera ventil
2.3.2 V19_04B FR4::IO.Tgr153.V19_04B.Aktivera.Value UT Aktivera ventil
2.3.3 V20_04B FR4::IO.Tgr153.V20_04B.Aktivera.Value UT Aktivera ventil
2.3.4 V20_05B FR4::IO.Tgr153.V20_05B.Aktivera.Value UT Aktivera ventil
2.3.5 V21_02B FR4::IO.Tgr153.V21_02B.Aktivera.Value UT Aktivera ventil
2.3.6 V25_04B FR4::IO.Tgr153.V25_04B.Aktivera.Value UT Aktivera ventil
2.3.7 V17_04 FR4::IO.Tgr153.V17_04.Aktivera.Value UT Aktivera ventil
2.3.8 V13_02B FR4::IO.Tgr153.V13_02B.Aktivera.Value UT Aktivera ventil
2.3.9 V13_01B FR4::IO.Tgr153.V13_01B.Aktivera.Value UT Aktivera ventil
2.3.10 V41_01 FR4::IO.Tgr160.V41_01.Aktivera.Value UT Aktivera ventil
2.3.11 V19_18 FR4::IO.Tgr160.V19_18.Aktivera.Value UT Aktivera ventil
2.3.12 V41_05. FR4::IO.Tgr166.V41_05.Aktivera.Value Prøvetager utløp fra biorotor UT Aktivera ventil
2.3.13 V19_15 FR4::IO.Tgr160.V19_15.Aktivera.Value UT Aktivera ventil
2.3.14 V19_16 FR4::IO.Tgr160.V19_16.Aktivera.Value UT Aktivera ventil
2.3.15 V19_09 FR4::IO.Tgr160.V19_09.Aktivera.Value UT Aktivera ventil

Page 152

System:172.16.0.7 StartAddress:2.4.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

2.4.0 V17_03B.FB1 FR4::IO.Tgr153.V17_03B.FB1.Value INN Ventil åpen
2.4.1 V17_03B.FB2 FR4::IO.Tgr153.V17_03B.FB2.Value INN Ventil stengt
2.4.2 V17_05B.FB1 FR4::IO.Tgr153.V17_05B.FB1.Value INN Ventil åpen
2.4.3 V17_05B.FB2 FR4::IO.Tgr153.V17_05B.FB2.Value INN Ventil stengt
2.4.4 V19_04B.FB1 FR4::IO.Tgr153.V19_04B.FB1.Value INN Ventil åpen
2.4.5 V19_04B.FB2 FR4::IO.Tgr153.V19_04B.FB2.Value INN Ventil stengt
2.4.6 V20_04B.FB1 FR4::IO.Tgr153.V20_04B.FB1.Value INN Ventil åpen
2.4.7 V20_04B.FB2 FR4::IO.Tgr153.V20_04B.FB2.Value INN Ventil stengt
2.4.8 V20_05B.FB1 FR4::IO.Tgr153.V20_05B.FB1.Value INN Ventil åpen
2.4.9 V20_05B.FB2 FR4::IO.Tgr153.V20_05B.FB2.Value INN Ventil stengt
2.4.10 V21_02B.FB1 FR4::IO.Tgr153.V21_02B.FB1.Value INN Ventil åpen
2.4.11 V21_02B.FB2 FR4::IO.Tgr153.V21_02B.FB2.Value INN Ventil stengt
2.4.12 V25_04B.FB1 FR4::IO.Tgr153.V25_04B.FB1.Value INN Ventil åpen
2.4.13 V25_04B.FB2 FR4::IO.Tgr153.V25_04B.FB2.Value INN Ventil stengt
2.4.14 V17_04.FB1 FR4::IO.Tgr153.V17_04.FB1.Value INN Ventil åpen
2.4.15 V17_04.FB2 FR4::IO.Tgr153.V17_04.FB2.Value INN Ventil stengt

Page 153

System:172.16.0.7 StartAddress:2.5.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

2.5.0 V13_02B.FB1 FR4::IO.Tgr153.V13_02B.FB1.Value INN Ventil åpen
2.5.1 V13_02B.FB2 FR4::IO.Tgr153.V13_02B.FB2.Value INN Ventil stengt
2.5.2 V13_01B.FB1 FR4::IO.Tgr153.V13_01B.FB1.Value INN Ventil åpen
2.5.3 V13_01B.FB2 FR4::IO.Tgr153.V13_01B.FB2.Value INN Ventil stengt
2.5.4 V41_01.FB1 FR4::IO.Tgr160.V41_01.FB1.Value INN Ventil åpen
2.5.5 V41_01.FB2 FR4::IO.Tgr160.V41_01.FB2.Value INN Ventil stengt
2.5.6 V19_18.FB1 FR4::IO.Tgr160.V19_18.FB1.Value INN Ventil åpen
2.5.7 V19_18.FB2 FR4::IO.Tgr160.V19_18.FB2.Value INN Ventil stengt
2.5.8 V41_05.FB1 FR4::IO.Tgr166.V41_05.FB1.Value Prøvetager utløp fra biorotor INN Ventil åpen
2.5.9 V41_05.FB2 FR4::IO.Tgr166.V41_05.FB2.Value Prøvetager utløp fra biorotor INN Ventil stengt
2.5.10 V19_15.FB1 FR4::IO.Tgr160.V19_15.FB1.Value INN Ventil åpen
2.5.11 V19_15.FB2 FR4::IO.Tgr160.V19_15.FB2.Value INN Ventil stengt
2.5.12 V19_16.FB1 FR4::IO.Tgr160.V19_16.FB1.Value INN Ventil åpen
2.5.13 V19_16.FB2 FR4::IO.Tgr160.V19_16.FB2.Value INN Ventil stengt
2.5.14 V19_09.FB1 FR4::IO.Tgr160.V19_09.FB1.Value INN Ventil åpen
2.5.15 V19_09.FB2 FR4::IO.Tgr160.V19_09.FB2.Value INN Ventil stengt

Page 154

System:172.16.0.7 StartAddress:2.6.0 Cardtype:OB16

SafeState = Reset

Address IOTagName Attributes

2.6.0 M13_20 FR4::IO.Tgr153.M13_20.Starta.Value UT Aktivera pumpen
2.6.1 M19_21 FR4::IO.Tgr160.M19_21.Starta.Value UT Aktivera pumpen
2.6.2 M19_22 FR4::IO.Tgr160.M19_22.Starta.Value UT Aktivera pumpen
2.6.3 M20_21 FR4::IO.Tgr153.M20_21.Starta.Value UT Aktivera pumpen
2.6.4 M21_20 FR4::IO.Tgr153.M21_20.Starta.Value UT Aktivera pumpen
2.6.5 M25_20 FR4::IO.Tgr153.M25_20.Starta.Value UT Aktivera pumpen
2.6.6 M25_30 FR4::IO.Tgr153.M25_30.Starta.Value UT Aktivera pumpen
2.6.7 M19_30 FR4::IO.Tgr160.M19_30.Starta.Value UT Aktivera pumpen
2.6.8 M19_23 FR4::IO.Tgr160.M19_23.Starta.Value UT Aktivera pumpen
2.6.9 M23_20 FR4::IO.Tgr160.M23_20.Starta.Value UT Aktivera pumpen
2.6.10 M10.21 FR4::IO.Tgr150.M10_21.Starta.Value UT Aktivera pumpen
2.6.11 M10.20 FR4::IO.Tgr150.M10_20.Starta.Value UT Aktivera pumpen
2.6.12 M41_30 FR4::IO.Tgr160.M41_30.Starta.Value UT Aktivera pumpen
2.6.13 M20_20 FR4::IO.Tgr153.M20_20.Starta.Value UT Aktivera pumpen

Page 155

System:172.16.0.7 StartAddress:2.7.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

2.7.0 M13_20.Run FR4::IO.Tgr153.M13_20.Run.Value IN Signal från sluten kontaktor
2.7.1 M19_21.Run FR4::IO.Tgr160.M19_21.Run.Value IN Signal från sluten kontaktor
2.7.2 M19_22.Run FR4::IO.Tgr160.M19_22.Run.Value IN Signal från sluten kontaktor
2.7.3 M20_21.Run FR4::IO.Tgr153.M20_21.Run.Value IN Signal från sluten kontaktor
2.7.4 M21_20.Run FR4::IO.Tgr153.M21_20.Run.Value IN Signal från sluten kontaktor
2.7.5 M25_20.Run FR4::IO.Tgr153.M25_20.Run.Value IN Signal från sluten kontaktor
2.7.6 M25_30.Run FR4::IO.Tgr153.M25_30.Run.Value IN Signal från sluten kontaktor
2.7.7 M19_30.Run FR4::IO.Tgr160.M19_30.Run.Value IN Signal från sluten kontaktor
2.7.8 M19_23.Run FR4::IO.Tgr160.M19_23.Run.Value IN Signal från sluten kontaktor
2.7.9 M23_20.Run FR4::IO.Tgr160.M23_20.Run.Value IN Signal från sluten kontaktor
2.7.10 M10.21Run FR4::IO.Tgr150.M10_21.Run.Value IN Signal från sluten kontaktor
2.7.11 M10.20Run FR4::IO.Tgr150.M10_20.Run.Value IN Signal från sluten kontaktor
2.7.12 M41_30.Run FR4::IO.Tgr160.M41_30.Run.Value IN Signal från sluten kontaktor
2.7.13 M20_20.Run FR4::IO.Tgr153.M20_20.Run.Value IN Signal från sluten kontaktor
