Konsern Anlegg: System 1

Introduksjon

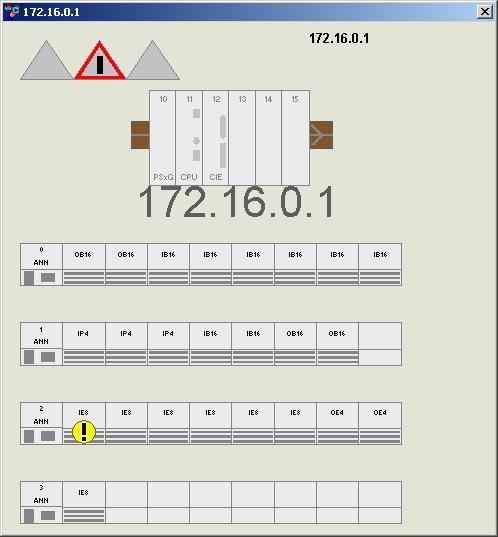

• System 1, Tavlerom kjeller. IPadresse 172.16.0.1 håndterer hovedsakelig signaler fra mottak, grensemelk og vaskestasjoner i prosessanlegget. Se IOliste



System

Teknisk beskrivelse

• Arbeidsstasjoner anlegget
• Styresystemer i anlegget
• • System 1, Tavlerom kjeller. IPadresse 172.16.0.1
  • System 2, Tavlerom 1. etg. IPadresse 172.16.0.2
  • System 3, Tavlerom 1. etg. IPadresse 172.16.0.3
  • System 4, Tavlerom 1. etg. IPadresse 172.16.0.4
  • System 6, Tavlerom 1. etg. IPadresse 172.16.0.6
  • System 7, Renseanlegg kj. IPadresse 172.16.0.7

Funksjonsbeskrivelse

• Se manualer og dokumentasjon i SattLine.

Tanker

• .

Linjer

• .

Kjølere

• .

Pasteurer

• .

Separatorer

• .

Homogenisatorer

• .

Andre

• IOListe



2004-09-16-12:51:47 Anlegg2004

Page 1
System:172.16.0.1 StartAddress:0.0.0 Cardtype:OB16
SafeState = Reset

Address IOTagName Attributes

0.0.2 V1904(V1904) FR3::IO.Tgr110.V1904.Aktivera.Value UT Aktivera ventil
0.0.3 V1905(V1905) FR3::IO.Tgr110.V1905.Aktivera.Value UT Aktivera ventil
0.0.4 V1906(V1906) FR3::IO.Tgr110.V1906.Aktivera.Value UT Aktivera ventil
0.0.5 V1907(V1907) FR3::IO.Tgr110.V1907.Aktivera.Value UT Aktivera ventil
0.0.13 V1915(V1915) FR3::IO.Tgr120.V1915.Aktivera.Value UT Aktivera ventil
0.0.14 V1916(V1916) FR3::IO.Tgr120.V1916.Aktivera.Value UT Aktivera ventil
0.0.15 V1917(V1917) FR3::IO.Tgr120.V1917.Aktivera.Value UT Aktivera ventil

Page 2

System:172.16.0.1 StartAddress:0.1.0 Cardtype:OB16

SafeState = Reset

Address IOTagName Attributes

0.1.0 V1918(V1918) FR3::IO.Tgr120.V1918.Aktivera.Value UT Aktivera ventil
0.1.1 V1919(V1919) FR3::IO.Tgr120.V1919.Aktivera.Value UT Aktivera ventil
0.1.2 V1920(V1920) FR3::IO.Tgr120.V1920.Aktivera.Value UT Aktivera ventil
0.1.3 V1921(V1921) FR3::IO.Tgr120.V1921.Aktivera.Value UT Aktivera ventil
0.1.4 V1922(V1922) FR3::IO.Tgr120.V1922.Aktivera.Value UT Aktivera ventil
0.1.5 V1925(V1925) FR3::IO.Tgr120.V1925.Aktivera.Value UT Aktivera ventil
0.1.6 V1926(V1926) FR3::IO.Tgr110.V1926.Aktivera.Value UT Aktivera ventil
0.1.8 D2DriftL95('19238-H01') FR3::IO.Tgr90.D2DriftL95.Value D2DriftL95('19238-H01')
0.1.9 D1DriftL45('19239-H01') FR3::IO.Tgr45.D1DriftL45.Value D1DriftL45('19239-H01')
0.1.10 D1DriftL45('19244-H01') FR3::IO.Tgr45.D1DriftL45b.Value D1DriftL45('19244-H01')
0.1.13 V1962 FR3::IO.Tgr118.V1962.Aktivera.Value SPARE1274 UT Aktivera ventil

Page 3

System:172.16.0.1 StartAddress:0.2.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

0.2.0 V1918.FB1() FR3::IO.Tgr120.V1918.FB1.Value INN Ventil åpen
0.2.1 V1919.FB1() FR3::IO.Tgr120.V1919.FB1.Value INN Ventil åpen
0.2.2 V1920.FB1() FR3::IO.Tgr120.V1920.FB1.Value INN Ventil åpen
0.2.3 V1921.FB1() FR3::IO.Tgr120.V1921.FB1.Value INN Ventil åpen
0.2.4 V1922.FB1() FR3::IO.Tgr120.V1922.FB1.Value INN Ventil åpen
0.2.5 V1925.FB1() FR3::IO.Tgr120.V1925.FB1.Value INN Ventil åpen
0.2.6 V1926.FB1() FR3::IO.Tgr110.V1926.FB1.Value INN Ventil åpen
0.2.8 V1918.FB2() FR3::IO.Tgr120.V1918.FB2.Value INN Ventil stengt
0.2.9 V1919.FB2() FR3::IO.Tgr120.V1919.FB2.Value INN Ventil stengt
0.2.10 V1920.FB2() FR3::IO.Tgr120.V1920.FB2.Value INN Ventil stengt
0.2.11 V1921.FB2() FR3::IO.Tgr120.V1921.FB2.Value INN Ventil stengt
0.2.12 V1922.FB2() FR3::IO.Tgr120.V1922.FB2.Value INN Ventil stengt
0.2.13 V1925.FB2() FR3::IO.Tgr120.V1925.FB2.Value INN Ventil stengt
0.2.14 V1926.FB2() FR3::IO.Tgr110.V1926.FB2.Value INN Ventil stengt

Page 4

System:172.16.0.1 StartAddress:0.3.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

0.3.10 T101LSH('18521-LH') FR3::IO.Tgr100.T101.LSH.Value
0.3.11 T101LSL('18521-LL') FR3::IO.Tgr100.T101.LSL.Value
0.3.12 T102LSH('18522-LH') FR3::IO.Tgr100.T102.LSH.Value
0.3.13 T102LSL('18522-LL') FR3::IO.Tgr100.T102.LSL.Value
0.3.14 T103LSH('18523-LH') FR3::IO.Tgr100.T103.LSH.Value
0.3.15 T103LSL('18523-LL') FR3::IO.Tgr100.T103.LSL.Value

Page 5

System:172.16.0.1 StartAddress:0.4.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

0.4.0 T105LSH(12397-LH T97) FR3::IO.Tgr115.T105.LSH.Value Tidligere T97
0.4.1 T106LSH(12398-LH' T98) FR3::IO.Tgr115.T106.LSH.Value Tidligere T98
0.4.2 T106LSL(12398-LL' T98) FR3::IO.Tgr115.T106.LSL.Value Tidligere T98
0.4.3 T105LSL(12397-LL' T97) FR3::IO.Tgr115.T105.LSL.Value Tidligere T97
0.4.4 kaNødStopp('19131-S20') FR3::Application.RemSys1:IO_ka_NødStopp.Value
0.4.5 kbNødStopp('19131-S21') FR3::Application.RemSys1:IO_kb_NødStopp.Value
0.4.6 kcNødStopp('19131-S22') FR3::Application.RemSys1:IO_kc_NødStopp.Value
0.4.7 kdNødStopp('19131-S23') FR3::Application.RemSys1:IO_kd_NødStopp.Value
0.4.8 T121LSH('18211-LSM1') FR3::IO.Tgr120.Tank121.LSH.Value "Lut Tank"
0.4.9 T121LSM('18211-LSM2') FR3::IO.Tgr120.Tank121.LSM.Value "Lut Tank"
0.4.10 T121LSL('18211-LSL') FR3::IO.Tgr120.Tank121.LSL.Value "Lut Tank"
0.4.11 T122LSH('18212-LSM1') FR3::IO.Tgr120.Tank122.LSH.Value "Syre Tank"
0.4.12 T122LSM('18212-LSM2') FR3::IO.Tgr120.Tank122.LSM.Value "Syre Tank"
0.4.13 T122LSL('18212-LSL') FR3::IO.Tgr120.Tank122.LSL.Value "Syre Tank"
0.4.14 T123LSH('18213-LSM1') FR3::IO.Tgr120.Tank123.LSH.Value "Hett Vann Tank"
0.4.15 T123LSM('18213-LSM2') FR3::IO.Tgr120.Tank123.LSM.Value "Hett Vann Tank"

Page 6

System:172.16.0.1 StartAddress:0.5.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

0.5.0 T123LSL('18213-LSL') FR3::IO.Tgr120.Tank123.LSL.Value "Hett Vann Tank"
0.5.1 T124LSH('18214-LSM1') FR3::IO.Tgr120.Tank124.LSH.Value
0.5.2 T124LSM('18214-LSM2') FR3::IO.Tgr120.Tank124.LSM.Value
0.5.3 T124LSL('18214-LSL') FR3::IO.Tgr120.Tank124.LSL.Value
0.5.4 T125LSH('18215-LSM1') FR3::IO.Tgr120.Tank125.LSH.Value
0.5.5 T125LSM('18215-LSM2') FR3::IO.Tgr120.Tank125.LSM.Value
0.5.6 T125LSL('18215-LSL') FR3::IO.Tgr120.Tank125.LSL.Value
0.5.7 T126LSH('18216-LSM1') FR3::IO.Tgr120.Tank126.LSH.Value
0.5.8 T126LSM('18216-LSM2') FR3::IO.Tgr120.Tank126.LSM.Value
0.5.9 T126LSL('18216-LSL') FR3::IO.Tgr120.Tank126.LSL.Value
0.5.10 T119LSM('18912-LSL') FR3::IO.Tgr118.Tank119.LSM.Value
0.5.11 T118LSM('18922-LSL') FR3::IO.Tgr118.Tank118.LSM.Value
0.5.12 kfNødStopp('19132-S21') FR3::Application.RemSys1:IO_kf_NødStopp.Value Kobles til IO-kort

Page 7

System:172.16.0.1 StartAddress:0.6.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

0.6.0 L1Lis1('11110-LIS') FR3::IO.Tgr15.L1Lis1.Value L1Lis1('11110-LIS')
0.6.1 L2Lis1('11120-LIS') FR3::IO.Tgr15.L2Lis1.Value L2Lis1('11120-LIS')
0.6.2 L3Lis1('11130-LIS') FR3::IO.Tgr15.L3Lis1.Value L3Lis1('11130-LIS')
0.6.3 L4Lis1('11140-LIS') FR3::IO.Tgr15.L4Lis1.Value L4Lis1('11140-LIS')
0.6.4 L45Lis('11210-LIS') FR3::IO.Tgr45.L45Lis1.Value L45Lis2('11210-LIS1')
0.6.5 L95Lis1('11220-LIS1') FR3::IO.Tgr90.L95Lis1.Value L95Lis1('11220-LIS1')
0.6.6 L95Lis2('11220-LIS2') FR3::IO.Tgr45.L45Lis2.Value L45Lis2('11220-LIS2')
0.6.7 L103Lis1('11230-LIS1') FR3::IO.Tgr115.Utlevering1.Lis.Value
0.6.8 L103Lis2('11230-LIS2') FR3::IO.Tgr115.Utlevering2.Lis.Value
0.6.9 L103Lis3('11230-LIS3') FR3::IO.Tgr115.Utlevering3.Lis.Value
0.6.10 Bil3Lis1('18131-LIS1') FR3::IO.Tgr15.Bil3Lis1.Value Bil3Lis1('18131-LIS1')
0.6.11 Bil3Lis2('18131-LIS2') FR3::IO.Tgr15.Bil3Lis2.Value Bil3Lis2('18131-LIS2')
0.6.12 Bil2Lis1('18132-LIS1') FR3::IO.Tgr15.Bil2Lis1.Value Bil2Lis1('18132-LIS1')
0.6.13 Bil2Lis2('18132-LIS2') FR3::IO.Tgr15.Bil2Lis2.Value Bil2Lis2('18132-LIS2')
0.6.14 Bil1Lis1('18133-LIS1) FR3::IO.Tgr15.Bil1Lis1.Value Bil1Lis1('18133-LIS1)
0.6.15 Bil1Lis2('18133-LIS2') FR3::IO.Tgr15.Bil1Lis2.Value Bil1Lis2('18133-LIS2')

Page 8

System:172.16.0.1 StartAddress:0.7.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

0.7.0 D2StartL95('19238-S01') FR3::IO.Tgr90.D2StartL95.Value D2StartL95('19238-S01')
0.7.1 D2StoppL95('19238-S02') FR3::IO.Tgr90.D2StoppL95.Value D2StoppL95('19238-S02')
0.7.2 D1StartL45('19239-S01') FR3::IO.Tgr45.D1StartL45.Value D1StartL45('19239-S01')
0.7.3 D1StoppL45('19239-S02') FR3::IO.Tgr45.D1StoppL45.Value D1StoppL45('19239-S02')
0.7.4 D1StartL45b('19244-S01') FR3::IO.Tgr45.D1StartL45b.Value D1StartL45b('19244-S01')
0.7.5 D1StoppL45b('19244-S02') FR3::IO.Tgr45.D1StoppL45b.Value D1StoppL45b('19244-S02')
0.7.8 NødSt_vTgr110('19161-S01') FR3::IO.NødSt_vTgr110.Value NødSt_vTgr110('19161-S01')
0.7.9 NødSt_vTgr120('19162-S01') FR3::IO.NødSt_vTgr120.Value NødSt_vTgr120('19162-S01')
0.7.10 NødSt_vTgr10('19263-S01') FR3::IO.NødSt_vTgr10.Value NødSt_vTgr10('19263-S01')
0.7.11 NødSt_vPast('19264-S01') FR3::IO.NødSt_vPast.Value NødSt_vPast('19264-S01')
0.7.12 NødSt_vTapperi('19265-S01') FR3::IO.NødSt_vTapperi.Value NødSt_vTapperi('19265-S01')
0.7.13 NødSt_vTanker('19366-S01') FR3::IO.NødSt_vTanker.Value NødSt_vTanker('19366-S01')
0.7.15 L5Lis1('11150-LIS') FR3::IO.Tgr15.L5Lis1.Value L5Lis1('11140-LIS')

Page 9

System:172.16.0.1 StartAddress:1.0.0 Cardtype:IP4

IO-document not supported on this module

Page 10

System:172.16.0.1 StartAddress:1.1.0 Cardtype:IP4

IO-document not supported on this module

Page 11

System:172.16.0.1 StartAddress:1.2.0 Cardtype:IP4

IO-document not supported on this module

Page 12

System:172.16.0.1 StartAddress:1.3.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

1.3.0 Lu1LSH('11112-LSH') FR3::IO.Tgr15.T1.LSH.Value
1.3.1 Lu1LSL('11112-LSL') FR3::IO.Tgr15.T1.LSL.Value
1.3.2 Lu2LSH('11122-LSH') FR3::IO.Tgr15.T2.LSH.Value
1.3.3 Lu2LSL('11122-LSL') FR3::IO.Tgr15.T2.LSL.Value
1.3.4 Lu3LSH('11132-LSH') FR3::IO.Tgr15.T3.LSH.Value
1.3.5 Lu3LSL('11132-LSL') FR3::IO.Tgr15.T3.LSL.Value
1.3.6 Lu4LSH('11142-LSH') FR3::IO.Tgr15.T4.LSH.Value
1.3.7 Lu4LSL('11142-LSL') FR3::IO.Tgr15.T4.LSL.Value
1.3.8 kgNødStopp('19132-S22') FR3::Application.RemSys1:IO_kg_NødStopp.Value
1.3.9 khNødStopp('19132-S23') FR3::Application.RemSys1:IO_kh_NødStopp.Value
1.3.10 kiNødStopp('19132-S24') FR3::Application.RemSys1:IO_ki_NødStopp.Value
1.3.11 kkNødStopp('19132-S25') FR3::Application.RemSys1:IO_kk_NødStopp.Value
1.3.13 T511LSH(18511-LH') FR3::IO.Tgr140.T511.LSH.Value Grense melk
1.3.14 T514LSH('18514-LH') FR3::IO.Tgr140.T514.LSH.Value Grense melk
1.3.15 T512LSH('18512-LH') FR3::IO.Tgr140.T512.LSH.Value Grense melk

Page 13

System:172.16.0.1 StartAddress:1.4.0 Cardtype:IB16

FilterConstant Address 0 - 11 = 0
Address 12 - 15 = 0

Address IOTagName Attributes

1.4.0 T111LSH('18111-LSM1') FR3::IO.Tgr110.Tank111.LSH.Value "Lut Tank"
1.4.1 T111LSM('18111-LSM2') FR3::IO.Tgr110.Tank111.LSM.Value "Lut Tank"
1.4.2 T111LSL('18111-LSL') FR3::IO.Tgr110.Tank111.LSL.Value "Lut Tank"
1.4.3 T112LSH('18112-LSM1') FR3::IO.Tgr110.Tank112.LSH.Value "Syre Tank"
1.4.4 T112LSM('18112-LSM2') FR3::IO.Tgr110.Tank112.LSM.Value "Syre Tank"
1.4.5 T112LSL('18112-LSL') FR3::IO.Tgr110.Tank112.LSL.Value "Syre Tank"
1.4.6 T113LSH('18113-LSM1') FR3::IO.Tgr110.Tank113.LSH.Value "Hett Vann Tank"
1.4.7 T113LSM('18113-LSM2') FR3::IO.Tgr110.Tank113.LSM.Value "Hett Vann Tank"
1.4.8 T113LSL('18113-LSL') FR3::IO.Tgr110.Tank113.LSL.Value "Hett Vann Tank"
1.4.9 T114LSH('18114-LSM1') FR3::IO.Tgr110.Tank114.LSH.Value
1.4.10 T114LSM('18114-LSM2') FR3::IO.Tgr110.Tank114.LSM.Value
1.4.11 T114LSL('18114-LSL') FR3::IO.Tgr110.Tank114.LSL.Value
1.4.12 T115LSH('18115-LSM1') FR3::IO.Tgr110.Tank115.LSH.Value
1.4.13 T115LSM('18115-LSM2') FR3::IO.Tgr110.Tank115.LSM.Value
1.4.14 T115LSL('18115-LSL) FR3::IO.Tgr110.Tank115.LSL.Value

Page 14

System:172.16.0.1 StartAddress:1.5.0 Cardtype:OB16

SafeState = Reset

Address IOTagName Attributes

1.5.0 klDrift FR3::IO.Tgr120.kl.Drift.Value UT
1.5.1 kfDrift FR3::IO.Tgr120.kf.Drift.Value UT
1.5.2 kgDrift FR3::IO.Tgr120.kg.Drift.Value UT
1.5.3 khDrift FR3::IO.Tgr120.kh.Drift.Value UT
1.5.4 kiDrift FR3::IO.Tgr120.ki.Drift.Value UT
1.5.5 kkDrift FR3::IO.Tgr120.kk.Drift.Value UT
1.5.8 klM1bRun FR3::IO.Tgr120.klM1b.Value P1737_6
1.5.9 kfM1bRun FR3::IO.Tgr120.kfM1b.Value P1737_1
1.5.10 kgM1bRun FR3::IO.Tgr120.kgM1b.Value P1731_6
1.5.11 khM1bRun FR3::IO.Tgr120.khM1b.Value P1731_1
1.5.12 kiM1bRun FR3::IO.Tgr120.kiM1b.Value P1731_2
1.5.13 kkM1bRun FR3::IO.Tgr120.kkM1b.Value P1731_3

Page 15

System:172.16.0.1 StartAddress:1.6.0 Cardtype:OB16

SafeState = Reset

Address IOTagName Attributes

1.6.0 kaDrift FR3::IO.Tgr110.ka.Drift.Value UT
1.6.1 kbDrift FR3::IO.Tgr110.kb.Drift.Value UT
1.6.2 kcDrift FR3::IO.Tgr110.kc.Drift.Value UT
1.6.3 kdDrift FR3::IO.Tgr110.kd.Drift.Value UT
1.6.8 kaM1bRun FR3::IO.Tgr110.kaM1b.Value P17xx_y
1.6.9 kbM1bRun FR3::IO.Tgr110.kbM1b.Value P1719_6
1.6.10 kcM1bRun FR3::IO.Tgr110.kcM1b.Value P1725_1
1.6.11 kdM1bRun FR3::IO.Tgr110.kdM1b.Value P17xx_y

Page 16

System:172.16.0.1 StartAddress:2.0.0 Cardtype:IE8 ver B

Address IOTagName Attributes

2.0.0 Lu1TT1('11110-TT1') FR3::IO.Tgr15.T1.TT_FørKjøler.Value <0.0..100.0> "°C" SignalRange = off
2.0.1 Lu1TT2('11110-TT2') FR3::IO.Tgr15.T1.TT_EtterKjøler.Value <0.0..100.0> "°C" SignalRange = off
2.0.2 Lu2TT1('11120-TT1') FR3::IO.Tgr15.T2.TT_FørKjøler.Value <0.0..100.0> "°C" SignalRange = off
2.0.3 Lu2TT2(IO.'11120-TT2') FR3::IO.Tgr15.T2.TT_EtterKjøler.Value <0.0..100.0> "°C" SignalRange = off
2.0.4 Lu3TT1('11130-TT1') FR3::IO.Tgr15.T3.TT_FørKjøler.Value <0.0..100.0> "°C" SignalRange = off
2.0.5 Lu3TT2('11130-TT2') FR3::IO.Tgr15.T3.TT_EtterKjøler.Value <0.0..100.0> "°C" SignalRange = off
2.0.6 Lu4TT1('11140-TT1') FR3::IO.Tgr15.T4.TT_FørKjøler.Value <0.0..100.0> "°C" SignalRange = off
2.0.7 Lu4TT2('11140-TT2') FR3::IO.Tgr15.T4.TT_EtterKjøler.Value <0.0..100.0> "°C" SignalRange = off

Page 17

System:172.16.0.1 StartAddress:2.1.0 Cardtype:IE8 ver B

Address IOTagName Attributes

2.1.0 kaTT('18131-TT2') FR3::IO.Tgr110.ka.TT.Value IN Retur-temperatur <0.0..100.0> "°C" SignalRange = off
2.1.1 kaCT('18131-CT') FR3::IO.Tgr110.ka.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off
2.1.2 kbTT('18132-TT2') FR3::IO.Tgr110.kb.TT.Value IN Retur-temperatur <0.0..100.0> "°C" SignalRange = off
2.1.3 kbCT('18132-CT') FR3::IO.Tgr110.kb.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off
2.1.4 kcTT('18133-TT2') FR3::IO.Tgr110.kc.TT.Value IN Retur-temperatur <0.0..100.0> "°C" SignalRange = off
2.1.5 kcCT('18133-CT') FR3::IO.Tgr110.kc.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off
2.1.6 kdTT('18134-TT2') FR3::IO.Tgr110.kd.TT.Value IN Retur-temperatur <0.0..100.0> "°C" SignalRange = off
2.1.7 kdCT('18134-CT') FR3::IO.Tgr110.kd.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off

Page 18

System:172.16.0.1 StartAddress:2.2.0 Cardtype:IE8 ver B

Address IOTagName Attributes

2.2.0 T111TT('18111-TT') FR3::IO.Tgr110.Tank111.TT.Value "Lut Tank" Føler lokalt på tank <0.0..100.0> "°C" SignalRange = off
2.2.1 T111CT('18111-CT') FR3::IO.Tgr110.Tank111CT.CT.Value "Lut Tank" Analog føler <0.0..5000.0> "mS" SignalRange = off
2.2.2 T112TT('18112-TT') FR3::IO.Tgr110.Tank112.TT.Value "Syre Tank" Føler lokalt på tank <0.0..100.0> "°C" SignalRange = off
2.2.3 T112CT('18112-CT') FR3::IO.Tgr110.Tank112CT.CT.Value "Syre Tank" Analog føler <0.0..5000.0> "mS" SignalRange = off
2.2.4 T113TT('18113-TT') FR3::IO.Tgr110.Tank113.TT.Value "Hett Vann Tank" Føler lokalt på tank <0.0..100.0> "°C" SignalRange = off
2.2.6 klCT('18236-CT') FR3::IO.Tgr120.kl.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off
2.2.7 klTT('18236-TT2') FR3::IO.Tgr120.kl.TT.Value IN Retur-temperatur <0.0..100.0> "°C" SignalRange = off

Page 19

System:172.16.0.1 StartAddress:2.3.0 Cardtype:IE8 ver B

Address IOTagName Attributes

2.3.0 kfTT('18231-TT2') FR3::IO.Tgr120.kf.TT.Value IN Retur-temperatur <0.0..100.0> "°C" SignalRange = off
2.3.1 kfCT('18231-CT') FR3::IO.Tgr120.kf.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off
2.3.2 kgTT('18232-TT2') FR3::IO.Tgr120.kg.TT.Value IN Retur-temperatur <0.0..100.0> "°C" SignalRange = off
2.3.3 kgCT('18232-CT') FR3::IO.Tgr120.kg.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off
2.3.4 khTT('18233-TT2') FR3::IO.Tgr120.kh.TT.Value IN Retur-temperatur <0.0..100.0> "°C" SignalRange = off
2.3.5 khCT('18233-CT') FR3::IO.Tgr120.kh.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off
2.3.6 kiTT('18234-TT2') FR3::IO.Tgr120.ki.TT.Value IN Retur-temperatur <0.0..100.0> "°C" SignalRange = off
2.3.7 kiCT('18234-CT') FR3::IO.Tgr120.ki.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off

Page 20

System:172.16.0.1 StartAddress:2.4.0 Cardtype:IE8 ver B

Address IOTagName Attributes

2.4.0 kkTT('18235-TT2') FR3::IO.Tgr120.kk.TT.Value IN Retur-temperatur <0.0..1000.0> "°C" SignalRange = off
2.4.1 kkCT('18235-CT') FR3::IO.Tgr120.kk.CT.Value IN Retur-ledningsevne <0.0..5000.0> "mS" SignalRange = off
2.4.2 T121TT('18211-TT') FR3::IO.Tgr120.Tank121.TT.Value "Lut Tank" Føler lokalt på tank <0.0..100.0> "°C" SignalRange = off
2.4.3 T121CT('18211-CT') FR3::IO.Tgr120.Tank121CT.CT.Value "Lut Tank" Analog føler <0.0..5000.0> "mS" SignalRange = off
2.4.4 T122TT('18212-TT') FR3::IO.Tgr120.Tank122.TT.Value "Syre Tank" Føler lokalt på tank <0.0..100.0> "°C" SignalRange = off
2.4.5 T122CT('18212-CT') FR3::IO.Tgr120.Tank122CT.CT.Value "Syre Tank" Analog føler <0.0..5000.0> "mS" SignalRange = off
2.4.6 T123TT('18213-TT') FR3::IO.Tgr120.Tank123.TT.Value "Hett Vann Tank" Føler lokalt på tank <0.0..100.0> "°C" SignalRange = off

Page 21

System:172.16.0.1 StartAddress:2.5.0 Cardtype:IE8 ver B

Address IOTagName Attributes

2.5.0 T101TT('18521-TT') FR3::IO.Tgr100.T101.TT.Value <0.0..100.0> "°C" SignalRange = 4-20mA
2.5.1 T101LT('18521-LT) FR3::IO.Tgr100.T101.LT.Value <0.0..100.0> "%" SignalRange = 4-20mA
2.5.2 T102TT('18522-TT') FR3::IO.Tgr100.T102.TT.Value <0.0..100.0> "°C" SignalRange = 4-20mA
2.5.3 T102LT('18522-LT') FR3::IO.Tgr100.T102.LT.Value <0.0..100.0> "%" SignalRange = 4-20mA
2.5.4 T103TT('18523-TT') FR3::IO.Tgr100.T103.TT.Value <0.0..100.0> "°C" SignalRange = 4-20mA
2.5.5 T103LT('18523-LT') FR3::IO.Tgr100.T103.LT.Value <0.0..100.0> "%" SignalRange = 4-20mA
2.5.6 Lu5LT('11152-LT') FR3::IO.Tgr15.T5.LT.Value Nivåtransmitter Linje 5 <0.0..100.0> "%" SignalRange = 4-20mA
2.5.7 al_SPARE02328(SPARE02328) FR3::IO.Tgr120.ki.Optec.Value IN Retur-Optec Grensemelk Føler <0.0..100.0> "%" SignalRange = 4-20mA

Page 22

System:172.16.0.1 StartAddress:2.6.0 Cardtype:OE4 ver B

SafeState = Reset

Address IOTagName Attributes

2.6.0 kbM1SX('P1719-6SC') FR3::IO.Tgr110.kbM1.Ao.Value P1719_6 <0.0..100.0> "%" SignalRange = 4-20mA
2.6.1 kcM1SX('P1725-1SC') FR3::IO.Tgr110.kcM1.Ao.Value P1725_1 <0.0..100.0> "%" SignalRange = 4-20mA
2.6.2 khM1SX('P1731-1SC') FR3::IO.Tgr120.khM1.Ao.Value P1731_01 <0.0..100.0> "%" SignalRange = 4-20mA
2.6.3 kiM1SX('P1731-2SC') FR3::IO.Tgr120.kiM1.Ao.Value P1731_02 <0.0..100.0> "%" SignalRange = 4-20mA

Page 23

System:172.16.0.1 StartAddress:2.7.0 Cardtype:OE4 ver B

SafeState = Reset

Address IOTagName Attributes

2.7.0 kkM1SX('P1731-3SC') FR3::IO.Tgr120.kkM1.Ao.Value P1731_03 <0.0..100.0> "%" SignalRange = 4-20mA
2.7.1 T123EtterFyllRV FR3::IO.Tgr120.T123EtterFyll.RV.Value <0.0..100.0> "%" SignalRange = 4-20mA

Page 24

System:172.16.0.1 StartAddress:3.0.0 Cardtype:IE8 ver B

Address IOTagName Attributes

3.0.0 T105TT(12397-TT' T97) FR3::IO.Tgr115.T105.TT.Value Tidligere T97 <0.0..100.0> "°C" SignalRange = 4-20mA
3.0.1 T105LT(12397-LT' T97) FR3::IO.Tgr115.T105.LT.Value Tidligere T97 <0.0..100.0> "%" SignalRange = 4-20mA
3.0.2 T106TT(12398-TT' T98) FR3::IO.Tgr115.T106.TT.Value Tidligere T98 <0.0..100.0> "°C" SignalRange = off
3.0.3 T106LT(12398-LT' T98) FR3::IO.Tgr115.T106.LT.Value Tidligere T98 <0.0..100.0> "%" SignalRange = 4-20mA
3.0.4 T123EtterFyllTT FR3::IO.Tgr120.T123EtterFyll.TT.Value Analog føler <0.0..100.0> "°C" SignalRange = 4-20mA
3.0.5 T124TT FR3::IO.Tgr120.Tank124.TT.Value Føler lokalt på tank <0.0..100.0> "°C" SignalRange = 4-20mA
3.0.6 T125TT FR3::IO.Tgr120.Tank125.TT.Value Føler lokalt på tank <0.0..100.0> "°C" SignalRange = 4-20mA
